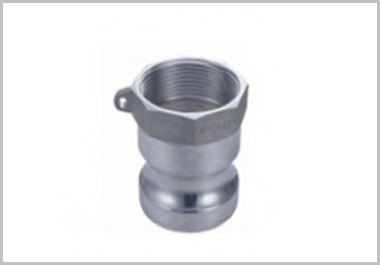

Camlock Coupling Type A

Camlock Coupling Type B

Camlock Coupling Type C

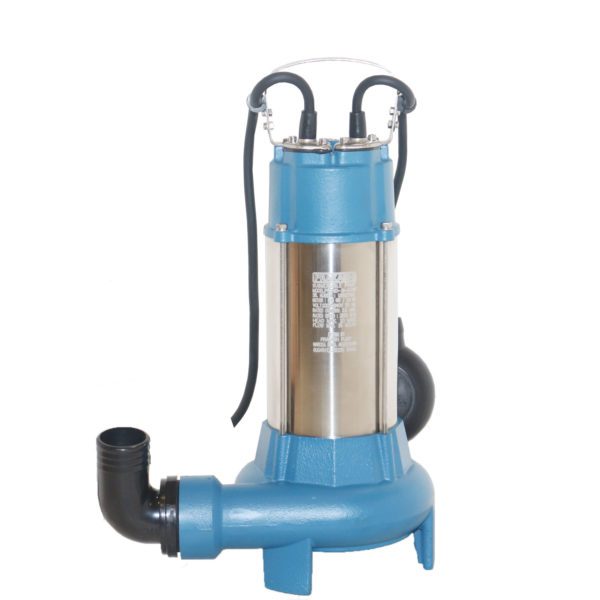

-Sewage Cutter Pump-

Description:-

A sewage cutter pump is designed to handle large concentrations of solids and/or tougher solids that conventional sewage pumps cannot handle. It provides clog-free operation by macerating those solids that might clog other types of submersible pumps.

0.5 HP SEWAGE PUMP PSP7-9-0.37F

Specification:-

Maximum immersion depth: 5m
Water temperature: Upto 40oC
Power supply: Single phase —220V ±10% / 50Hz;
The pH scope should be 4-10
Maximum density of the Trans medium is 1.2×10³kg/m³.
Viscosity of trans medium is 7×10-7 — 23×10-6m²/s;

Function & Feature:-

A submersible pump with a cutter is an ideal machine for draining sewage. A high-speed rotating cutter is assembled at the inlet hole of the pump, make it easy to cut off long-fiber and firm sundries contained in the sewage, so as to avoid the impeller is blocked by the entanglement.
The protector in the motor can automatically cut off the power when it overheated or overloaded, thus guarantee the security and reliability of the pump’s running even in the atrocious environment.

Description:-

A sewage cutter pump is designed to handle large concentrations of solids and/or tougher solids that conventional sewage pumps cannot handle. It provides clog-free operation by macerating those solids that might clog other types of submersible pumps.

1 HP SEWAGE PUMP (CUTTER)PSCP10-16-0.75F

Specification:-

Maximum immersion depth: 5m
Water temperature: Upto 40oC
Power supply: Single phase —220V ±10% / 50Hz;
The pH scope should be 4-10
The maximum density of Tran’s medium is 1.2×10³kg/m³.
The viscosity of trans medium is 7×10-7 — 23×10-6m²/s;

Function & Feature:-

A submersible pump with a cutter is an ideal machine for draining sewage. A high-speed rotating cutter is assembled at the inlet hole of the pump, make it easy to cut off long-fiber and firm sundries contained in the sewage, so as to avoid the impeller is blocked by the entanglement.
The protector in the motor can automatically cut off the power when it overheated or overloaded, thus guarantee the security and reliability of the pump’s running even in the atrocious environment.

Description:-

A sewage cutter pump is designed to handle a large concentrations of solids and/or tougher solids that conventional sewage pumps cannot handle. It provides clog-free operation by macerating those solids that might clog other types of submersible pumps.

2 HP SEWAGE PUMP (CUTTER) PSCP10-24-1.5F

Specification:-

Maximum immersion depth: 5m
Water temperature: Upto 40oC
Power supply: Single phase —220V ±10% / 50Hz;
The pH scope should be 4-10
The maximum density of Tran’s medium is 1.2×10³kg/m³.
Viscosity of trans medium is 7×10-7 — 23×10-6m²/s;

Function & Feature:-

A submersible pump with a cutter is an ideal machine for draining sewage. A high-speed rotating cutter is assembled at the inlet hole of the pump, make it easy to cut off long-fiber and firm sundries contained in the sewage, so as to avoid the impeller is blocked by the entanglement.
The protector in the motor can automatically cut off the power when it overheated or overloaded, thus guarantee the security and reliability of the pump’s running even in the atrocious environment.

-PERIPHERAL AND CENTRIFUGAL PUMPS-

Application:-

Agricultural
Irrigation of Fields/Farms
Industries
Housing complexes
Community water supply

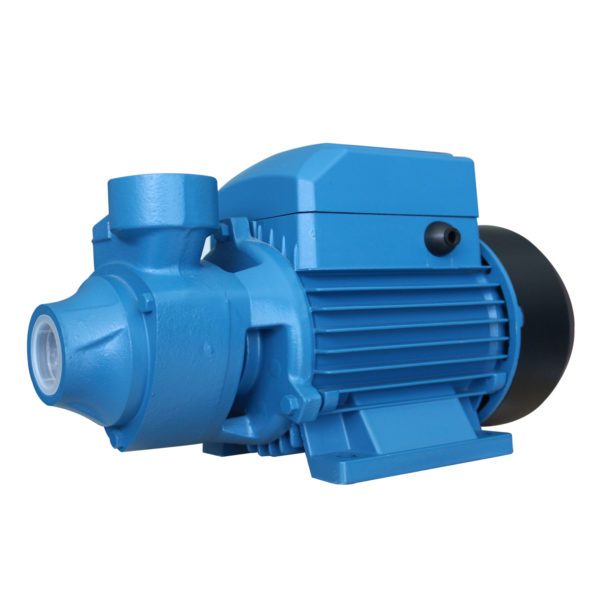

0.5 HP Peripheral Pump – PCP05

Performance Range:

Max Flow: 40 LPM
Max Head: 40 m
Max. Suction: 8 m
Speed 2900 rpm
Power .37Kw / 0.5HP
Inlet/Outlet: 1″ X 1″

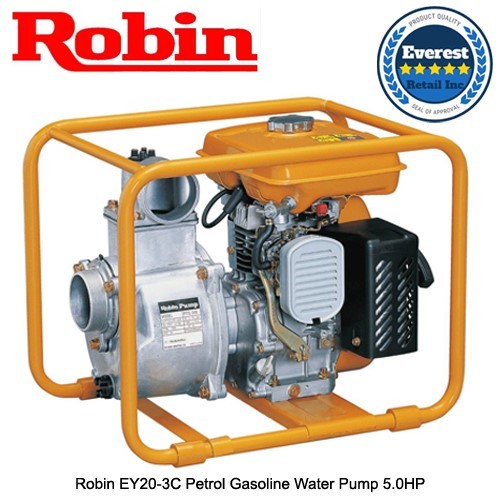

- Robin Water Pump -

Description:-

Robin brand
PUMP Type: Self-priming, Centrifugal
Total Head: 32m
Maximum Delivery Volume: 520L
Minimum Suction Head: 8m
Axle Seal Material (Mechanical Seal): Ceramic carbon
Engine Model: EY15DJ
Fuel: Automobile gasoline
Fuel Tank Capacity: 2.8L
Starting System: Recoil starter
Dry Weight: 23.5kg
Optional Accessories: Engine tool kit (1set), Strainer (1pc.), Hose coupling (2pcs.) Hose band (3p

Robin Water Pump

Description:-

Self priming pumps require initial priming to operate. Self lubricating carbon ceramic mechanical seal provides durable and rugged construction for long pump life. Abrasion-resistant, hardened cast-iron impeller effectively withstands suspended debris sucked through the strainer.

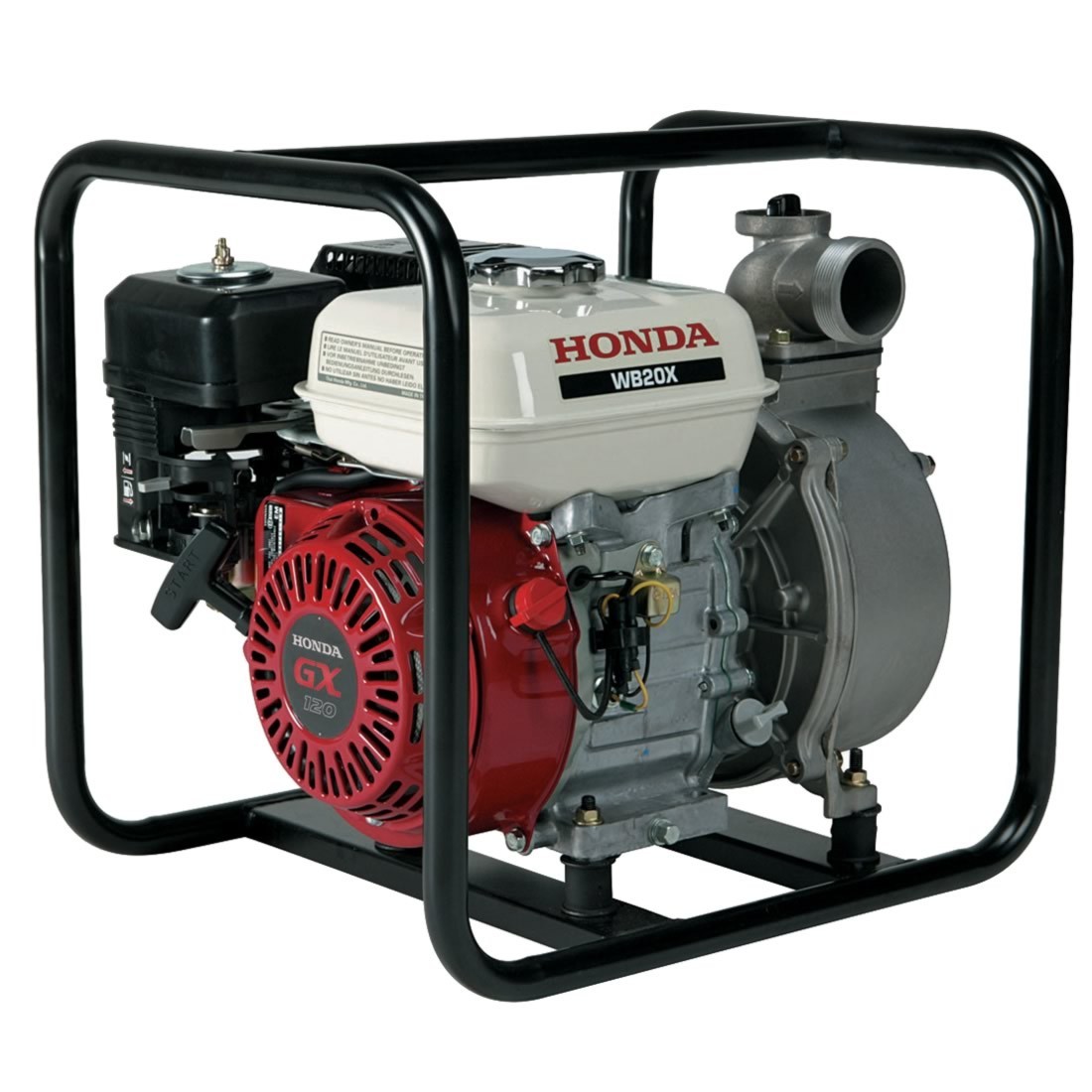

Honda water Pump

- Honda water Pump -

Application: Construction industry, Industries, Communities Delivery of groundwater and Dewatering.

Operation: Water and air pump, driven by Diesel engine, air separation chamber will automatically separate air from Suction line and discharge only water.

Design: Mounted on tank frame chassis (4 wheeled), movable at the site (4 km/h)

Open Impeller, we... Bronze, Vacuum producer pump with aluminum oil lubrication tank.

Pipe Connections: 6" Table D Suction and 6" Table discharge, Quick Couplings optional M, B, E & L Type.

Fuel Tank: Capacity: 150 ltr. 24-hour Cleaning and flushing facilities.

Engine: HA 394 Kirloskar engine, air-cooled, self-started.

Description:-

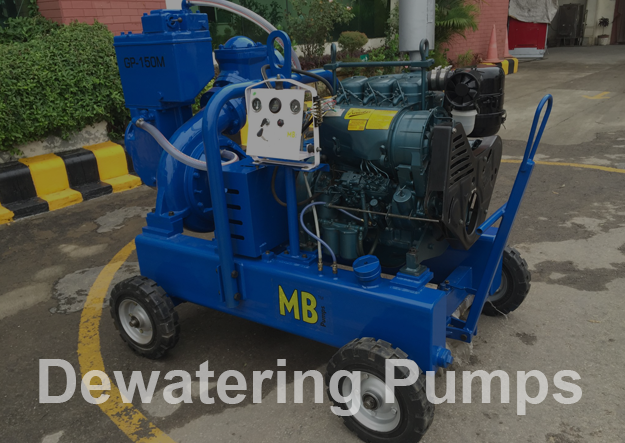

1. 6’’ A Series Dewatering Pumps (GP-150M) (320 m³/h)

1.2 6’’ C Series Piston Pumps (90 m³/h)

Key Features:
No need for a Priming system, It's a Self-Priming Pump, It has excellent suction capabilities on all types of flows. Less power is required to save running costs. It can also run dry. Easy to replace worn parts at minimum cost, It has long life durability.

Cleaning and Maintenance Windows:
The additional window is provided which allows easy cleaning & maintenance for valves, cylinders, and stuffing boxes.

Cylinder liners:
The fully machined stainless steel cylinder liners can be rotated for extended service life. Rotating and exchanging the cylinders is simple easy when servicing the pump.

Gear and Lubrication Design:
The Gear Drive is designed for less noise and automatically, lubricate in bearings, connecting Pins, Pistons, and Gears.

Valve system:
The valve system is provided which allows quick and easy dismantling Piston-rods Fully machined stainless steel, Piston Rod.

Key Features:
No need for a Priming system, It's a Self-Priming Pump, It has excellent suction capabilities on all types of flows. Less power is required to save running costs. It can also run dry. Easy to replace worn parts at minimum cost, It has long life durability.

Cleaning and Maintenance Windows:
The additional window is provided which allows easy cleaning & maintenance for valves, cylinders, and stuffing boxes.

Cylinder liners:
The fully machined stainless steel cylinder liners can be rotated for extended service life. Rotating and exchanging the cylinders is simple easy when servicing the pump.

Gear and Lubrication Design:
The Gear Drive is designed for less noise and automatically, lubricate in bearings, connecting Pins, Pistons, and Gears.

Valve system:
The valve system is provided which allows quick and easy dismantling Piston-rods Fully machined stainless steel, Piston Rod.

1.3.1 Quick Action Couplings / Miller / Bauer / Geho 2’ to 12’’ Fittings

T Type

1.3.3 Camlock Couplings

Camlock Coupling Type D

Camlock Coupling Type DC

Camlock Coupling Type DP

Camlock Coupling Type E

Camlock Coupling Type F

1.3.4 Well-Point (As per required Sizes)

1.3.5 6’’ Header Pipe (Miller Type)

1.3.6 Jubilee Clips (2’’ to 8’’)

1.3.8 Suction Hose (10 Bar) Make: Germany

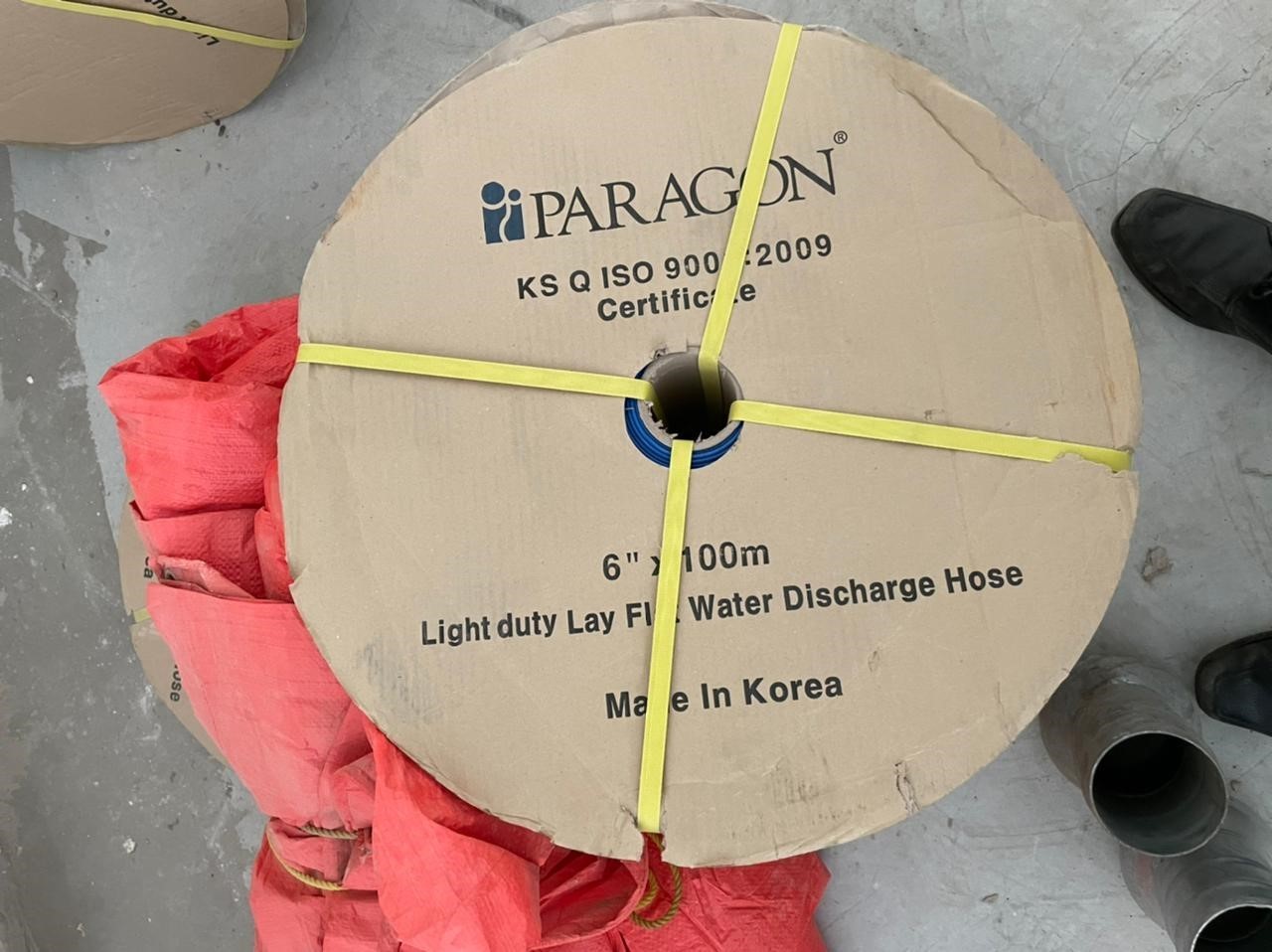

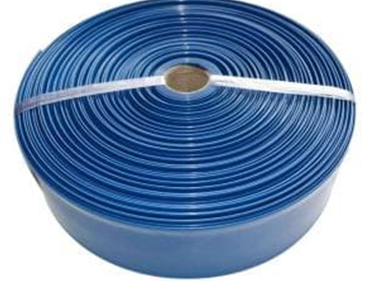

1.3.10 Lay flat Hose (4 Bar) (2’’ to 12’’) Make: Korea

1.3.9 Clear Hoses (1/4’’ to 6’’) Make: Korea

The New YDG from Yanmar for Power and Economy
If you are looking for a silent, compact, power source, with minimum fluctuations, the YDG is waiting for you. Durability and long operation are designed in. Mobility approaches that of a gasoline generator. And the direct injection air-cooled diesels, the amongst smallest in the world, offer very good fuel savings. The power is high. The cost is low. Specifications and accessories are available for most markets. Listen carefully, or you might not even notice they're at work.
AIR-COOLED DIESEL ENGINE L-N SERIES Its secret is Yanmar’ s micro-size fuel injection system. The fuel injection system, the heart of a diesel, has been refined through years of research and development at Yanmar. We have now succeeded in minimizing the weight and size of this equipment and simplifying the structure by adoption of a brushless pump and a smaller nozzle.

● Durable - because it is built by a specialist in large diesel technology.

●Convenient Recoil starter - a feature commonly associated with gasoline engines.

● Fuel costs dip to a new low with
